PCB Assembly
PCB assembly capabilities
SMT, THT, and mixed-technology builds with clear sourcing modes and test options, so RFQs arrive complete the first time.

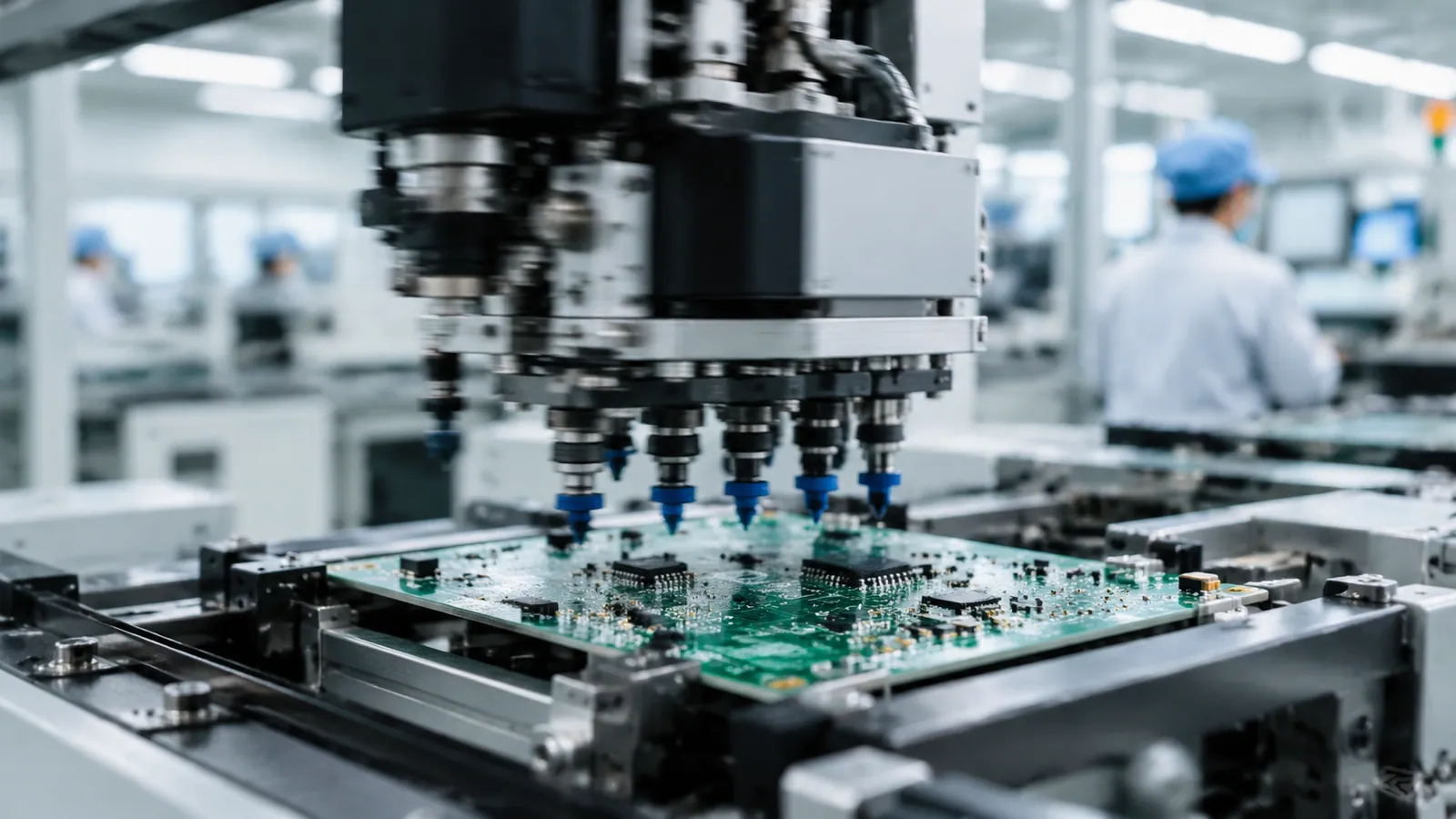

SMT capability
| Parameter | Capability |
|---|---|
| Min package | 01005 |
| BGA / QFN pitch | 0.35 mm (finer on review) |
| Board size | 50 × 50 mm – 420 × 500 mm (typical) |
| Sides | Single-sided / double-sided |
| THT / DIP | Manual + selective / wave (volume dependent) |
Special processes
| Parameter | Capability |
|---|---|
| Conformal coating | Acrylic / silicone / urethane (on request) |
| Potting / encapsulation | Supported for select housings |
| Firmware programming | Supported with fixtures / adapters |
| Press-fit | Supported |
| Odd-form parts | Manual / semi-auto placement |
Test capability
| Parameter | Capability |
|---|---|
| AOI | Post-reflow optical inspection |
| X-ray | BGA / QFN joint inspection |
| ICT | In-circuit test (fixture NRE may apply) |
| FCT | Functional test per your procedure |
| Other | Boundary scan / flying probe on review |
Component sourcing modes
Turnkey
We source the full BOM, fabricate PCBs, assemble, and test. Best when you want one accountable partner.
Partial
You consign critical or long-lead parts; we purchase the remainder and assemble.
Consigned
You supply all components (kitted). We focus on PCB + assembly + test.
Files required for RFQ
Complete packs cut clarification loops. Download the BOM template to match our parser-friendly columns.
- Gerber / ODB++ / IPC-2581 for the bare board
- BOM (Bill of Materials) with MPN, qty, and reference designators
- Pick & Place / centroid file
- Assembly drawing and special instructions (polarity, firmware, coating)
Delivery documentation
- FAI / first-article report (when requested)
- AOI / X-ray / ICT / FCT summaries as ordered
- RoHS / material declarations
- Packing list and commercial invoice for export
Ready for an assembly RFQ?
Upload Gerber + BOM + centroid and tell us turnkey, partial, or consigned.
